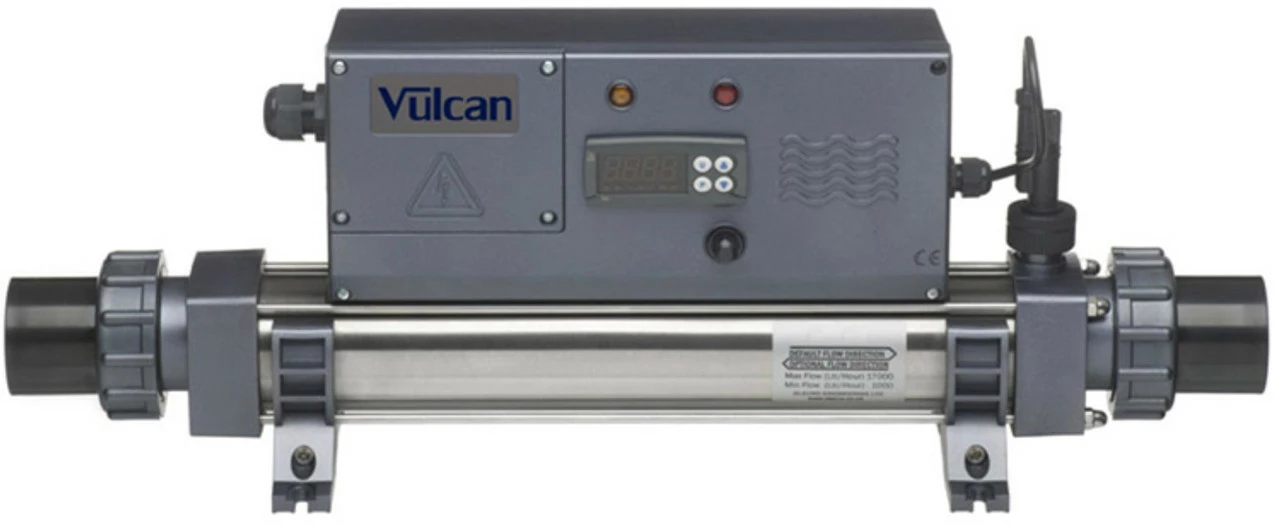

Elecro Vulcan Digital Electric Swimming Pool Heater

With the British made Elecro Vulcan Digital Electric Pool Heater, you’re guaranteed a high quality, dependable and durable product that will provide first class performance for an enduring lifespan.

As well as being straightforward and easy to install, the Elecro Vulcan Digital Electric Pool Heater also comes equipped with a thermal cut to ensure against over temperature and a reversible flow switch, both of which provide safety and equipment protection for worry free operations.

Featuring indicator lights, an LCD display and a simple keypad with which to input your desired swimming pool temperature, the Digital model of the Elecro Vulcan Electric Pool Heater is enhanced for easy and efficient temperature management and accuracy.

Now available with titanium heating elements and flow tube (the titanium model is suitable for use in salt water pools), the Elecro Vulcan Digital Electric Pool Heater also features swivel feet, making it versatile for either wall or floor mounting, and can be relied upon for a powerful, precise performance every time.

Elecro Vulcan Digital Electric Pool Heater Specifications:

• Power Supply: 230v single phase
• Flow Requirements: Minimum flow:- 1m³/h
• Maximum flow:- 17m³/h
• Heating Elements: Titanium
• Flow Tubes: Titanium
• Control Thermostat: 0>40°C (1°C differential)
• Safety Thermal Cut Out: 55°C (manual Reset)
• Flow Switch: Gold tipped reed switch with titanium fulcrum pin
• Wiring: High Temperature, Silicone sheathed, multi-strand copper conductors
• Seals: Special formula high temperature polymer
• Water connections: 1.5 inch BSP female thread
• Working pressure: 4 Barg maximum
• Mounting: Floor or wall mounting
• Standards Compliance: European Electromagnetic Compatibility directive 89/336/EEC and 93/068/EEC
• Harmonised: EN55014 – EN55104, EN5501, EN5502, CEI801-4, CEI801-2, CEI801-3, the European low voltage directive 72/23EEC, the harmonised standard EN60335-2-35
• VUL803PB Elecro Vulcan 3kW Swimming Pool Heater Single Phase Analogue Pool Heater With Titanium Elements



Model	kW	Phase	Price
V-8T83-D	3	1	£701
V-8T86-D	6	1	£719
V-8T89-D	9	1	£755
V-8T8A-D	12	1	£767
V-8T8B-D	15	1	£840
V-8T36V-D	6	3	£816
V-8T39V-D	9	3	£828
V-8T3AV-D	12	3	£840
V-8T3B-D	15	3	£852

Note: 1/3 phase Vulcan heaters are capable of being wired both single or three phase



Elecro Vulcan Electric Pool Heater Digital Manuals:

• Technical Details
• Installation Manual
