Dometic Waeco CRX110 Compressor Caravan Fridge-Freezer

The Waeco CRX110 fridge freezer is one of the larger compressor refrigerators in the range – it still features all the usual high standard interior and exterior qualities as all the Waeco boat and caravan fridges. The Waeco CRX110 caravan and motorhome fridge runs of both 12v & 24v but can also run off mains when connected to a MPS35 (We would recommend upgrading to the MPS50 as it has a higher amperage output). This particular refrigerator has a total 104 litre capacity which includes a 9.0 litre freezer compartment.

Dometic Waeco CRX110 features:

• Very low 12 or 24 volt power consumption
• Suitable for solar operation
• Tested in tropical conditions
• Rated freezer compartment
• Interior cool blue LED light
• Large bottle holder
• Door with magnetic seal
• Mechanical door catches top and bottom for secure closure when on the move
• Can be locked in a vented position when not in use
• Freezer compartment
• Door tray & Salad bin
• Easy to change décor panel
• Danfoss Compressor
• 2 years warranty

Optional extras

• The Waeco CRX110 fridge can be run off mains with the addition of the MPS35 Mains Power Unit (sold separately).
• A smart switching control unit ‘fit and forget.’ Automatically detects mains and rests the vehicle leisure battery when on ‘hook up,’ or ‘shorepower’ 9103555825 (sold separately)

Manual:

Diagnostics

• CR/CRX Flashes Chart
• Danfoss Compressor Diagnostics
• Coolmatic CR Troubleshooter

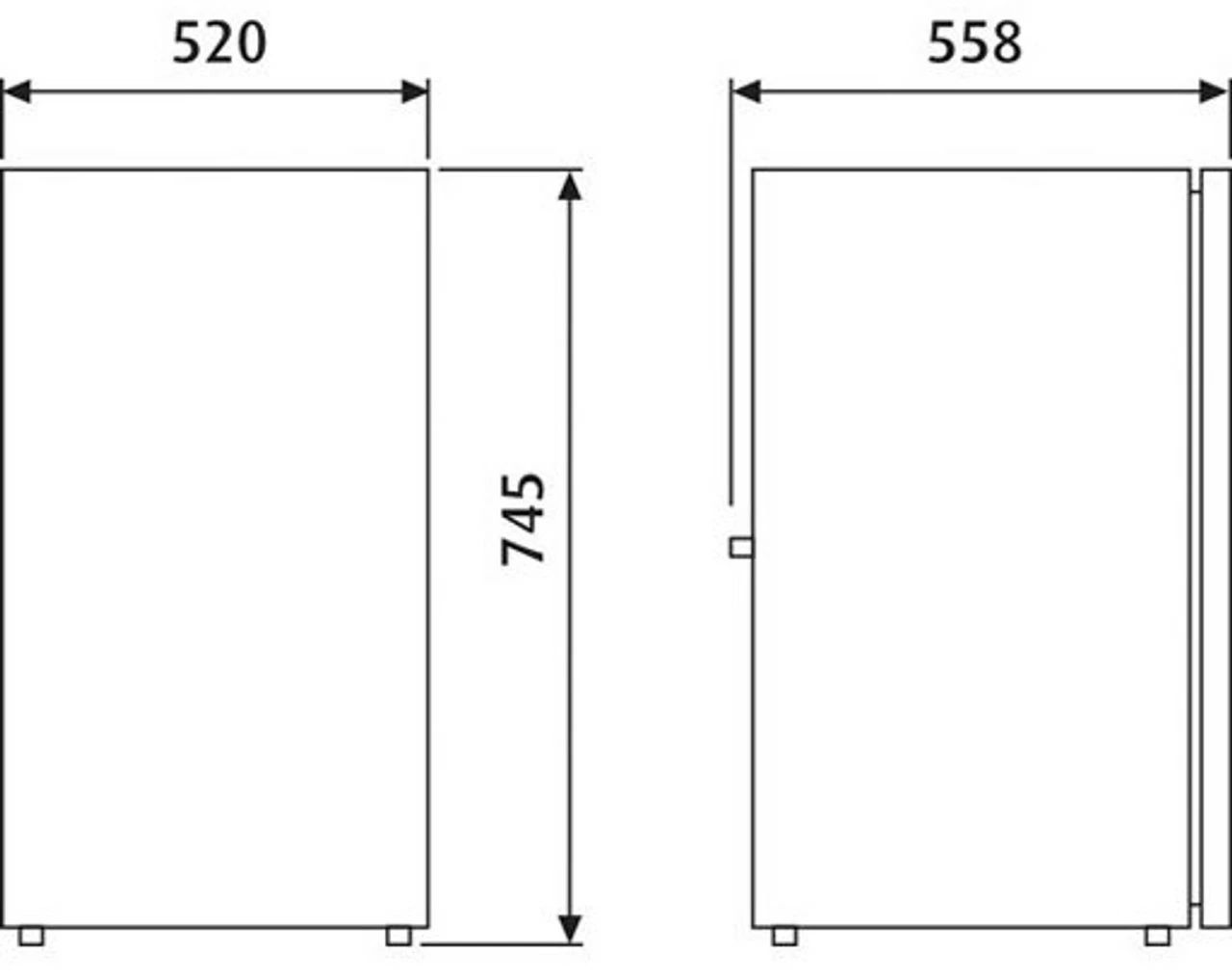

Technical Specifications:

Height (mm):

745

Width (mm):

520

Depth (mm):

558

Operation:

Compressor

Approx Weight:

26 kg

Runs on:

12/24v DC

Capacity:

104 litres including 9.0 litre freezer compartment

Connections:

12/24v

Average power consumption:

approx. 50 watts

Current consumption:

1.8 Ah/h at +25°C ambient temperature, 2.4 Ah/h at +32°C ambient temperature, both at +5°C interior temperature

Temperature:

12°C Fridge -15°C freezer
