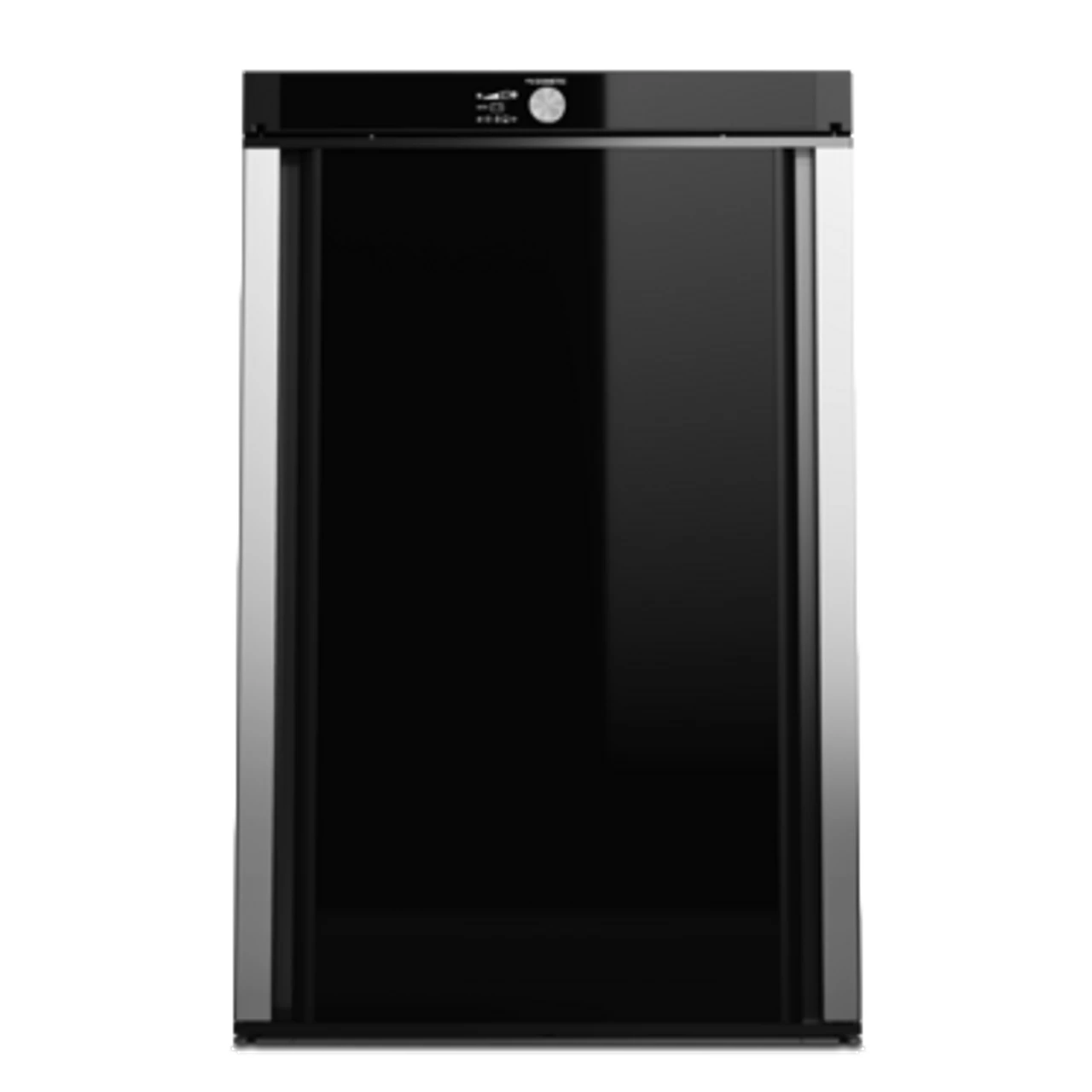

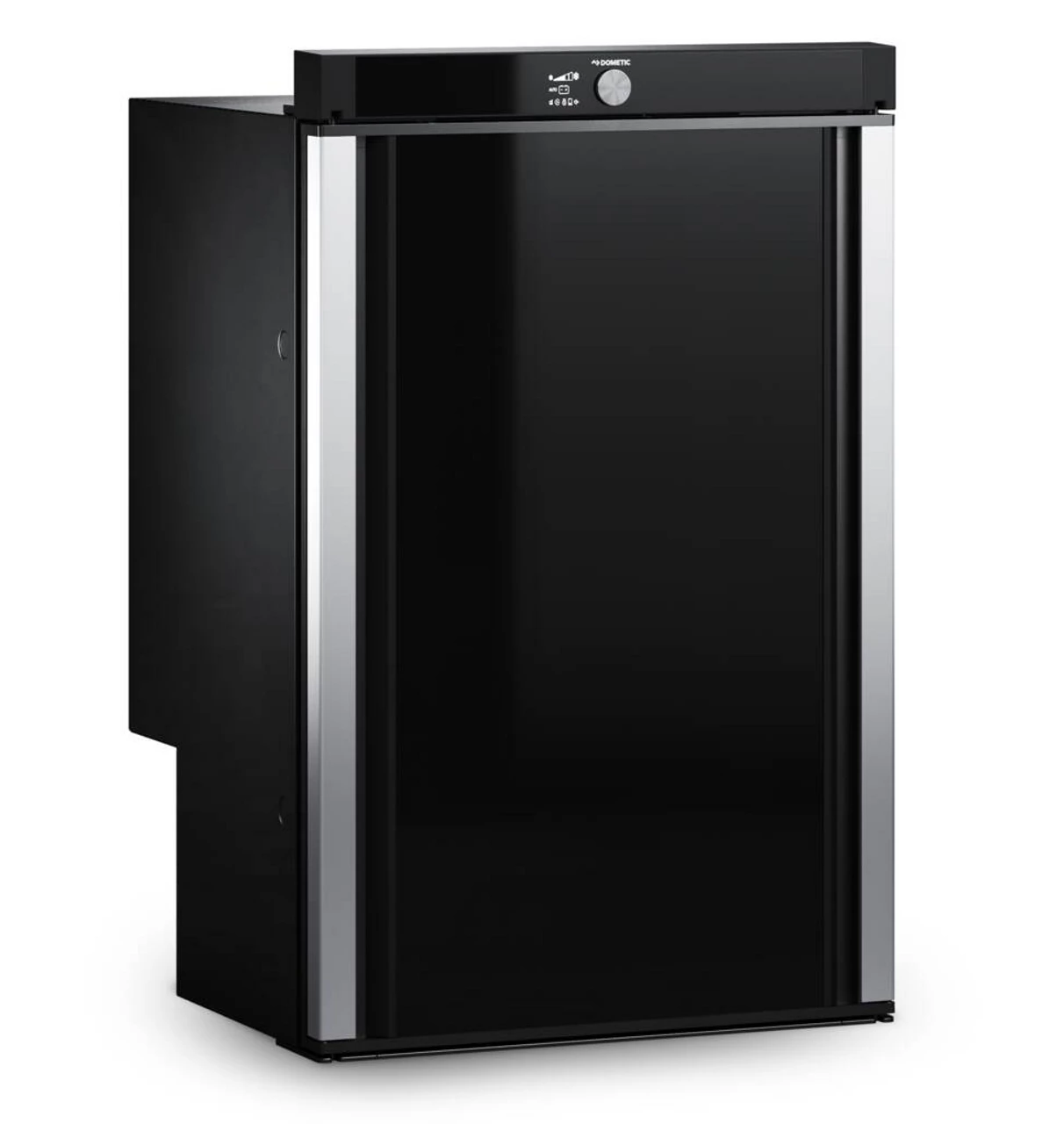

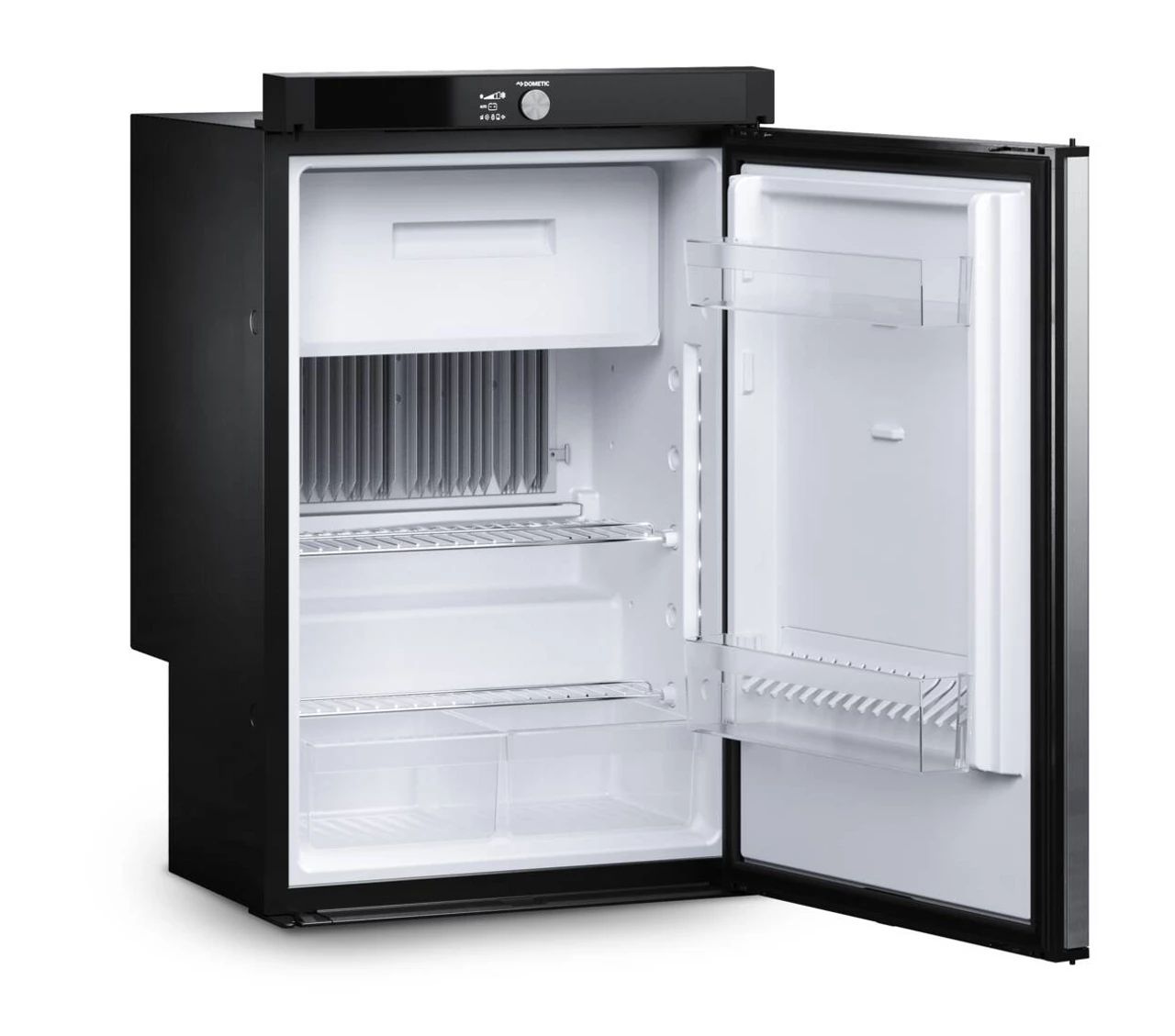

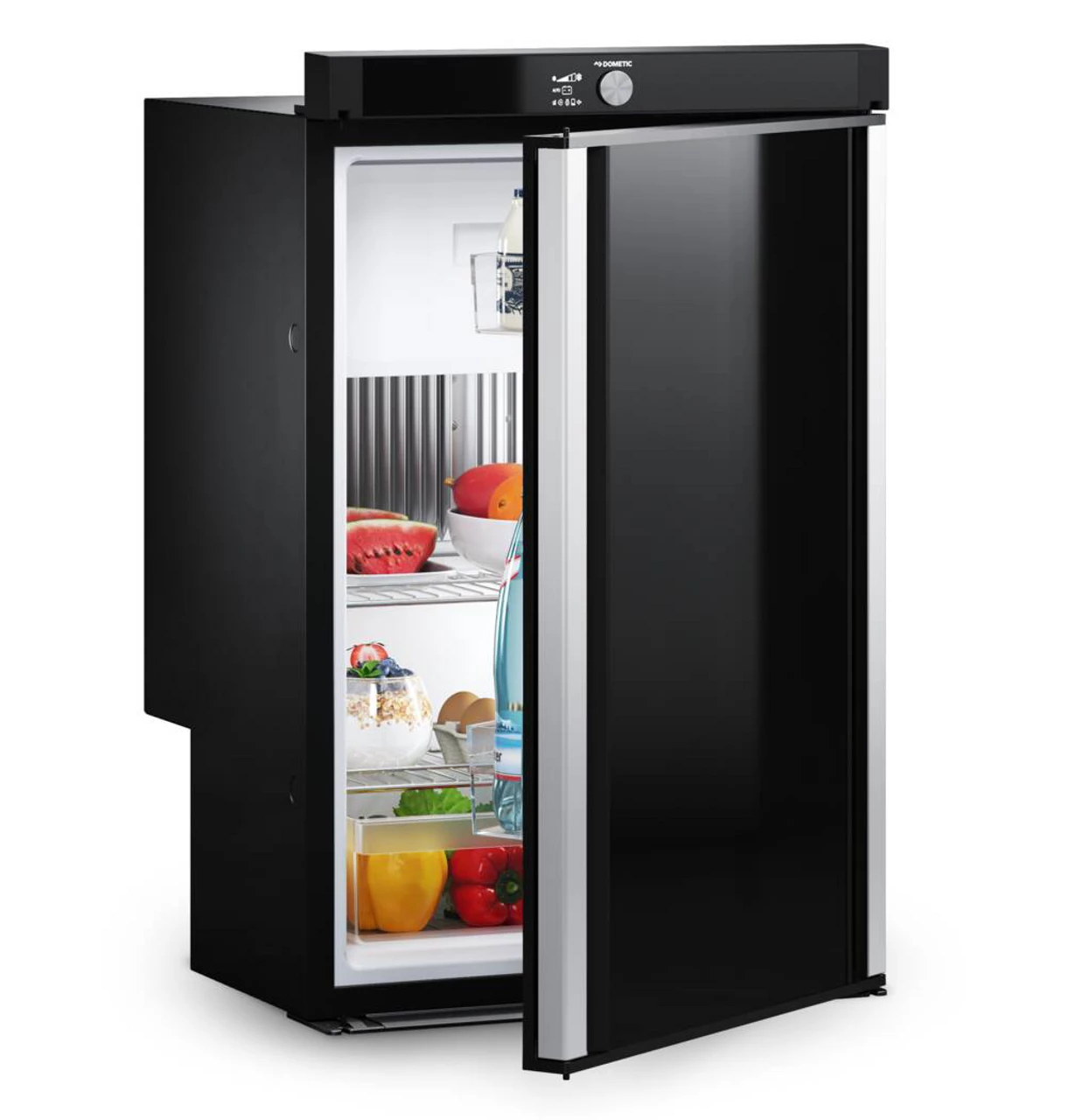

Dometic RMS 10.5T Wheel Arch Fridge for Campervan and Motorhomes

All the features of the Dometic RM10.5T, but with a compact design

The Dometic RMS 10.5T 3 way fridge packs all the same features as the full-size RM10.5T, but with a reduced lower volume to accommodate the wheel-arch of your vehicle. This allows you to maximise the space in your vehicle. In doing so, it retains much of the volume of the larger camper fridge, only dropping 10L to provide a total storage volume of 83L.

Flexible performance

A double door hinge allows the door to open on both the left and right, making it suitable for a range of installation points in campervans, motorhomes, caravans and boats. What’s more, the Dometic 10.5T is a 3-way fridge, meaning it can be powered by gas, 12V and 230V. The fridge is able to automatically switch between these power sources, allowing you to holiday with peace of mind. This camping fridge also has a removable freezer compartment, allowing you to find a storage configuration that works for your trip.

The modern cooling solution

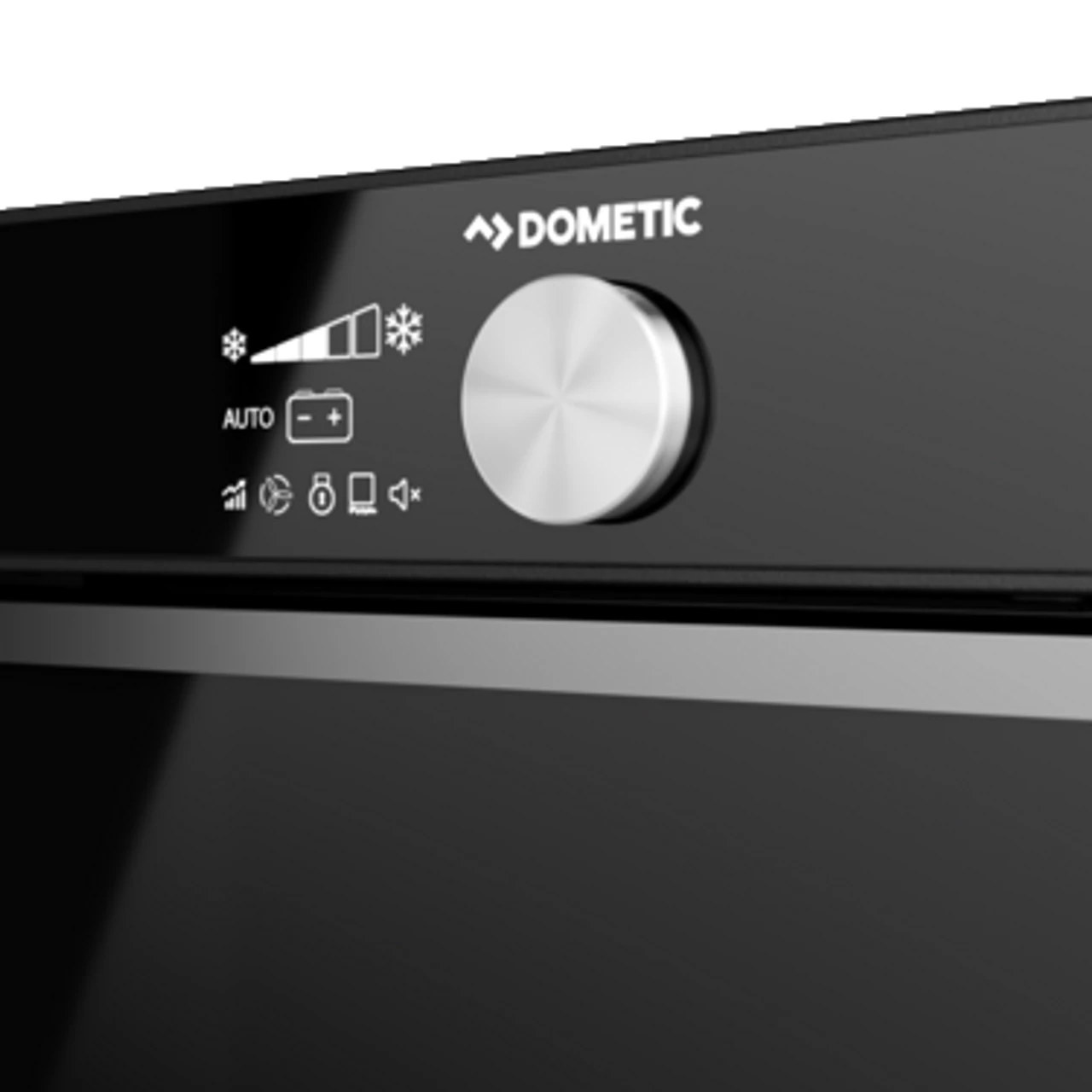

The Dometic RMS10.5T fridge comes equipped with a TFT colour display, which lets you monitor your fridge’s cooling & clearly see what power source is being used. The sleek design, with aluminium handles and simple push/turn knob give you excellent control over the fridge, while internal LED lighting make it easy to find what you’re looking for inside. Dometic have also equipped this fridge with their Smart CI-BUS system, which enables your 3-way fridge to communicate seamlessly with the latest campervan and caravan control panels. Thanks to its absorption refrigeration technology, this fridge can operate in near total silence. This makes it perfect for campervans, as it ensures you can get a good nights sleep.

Dometic RMS10.5T 3-Way Fridge Features:

• Dual-hinge doors can open from both sides
• 3-pay power on gas, 12V or 230V
• Automatic power switching
• Colour TFT screen to monitor power source usage & cooling performance
• Turn/push knob dial to control fridge
• Reduced lower profile to accommodate vehicle wheel arch

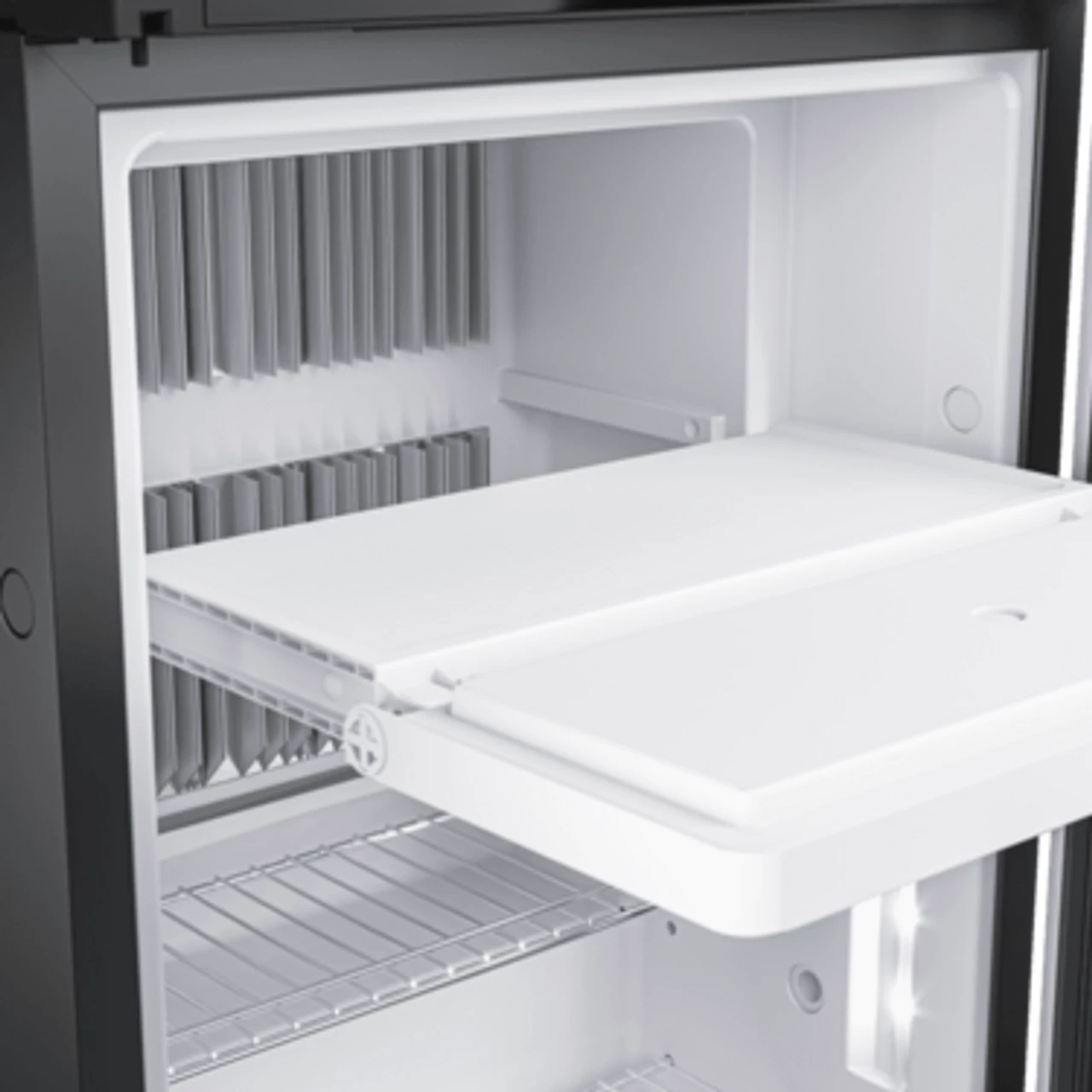

• Removable freezer compartment

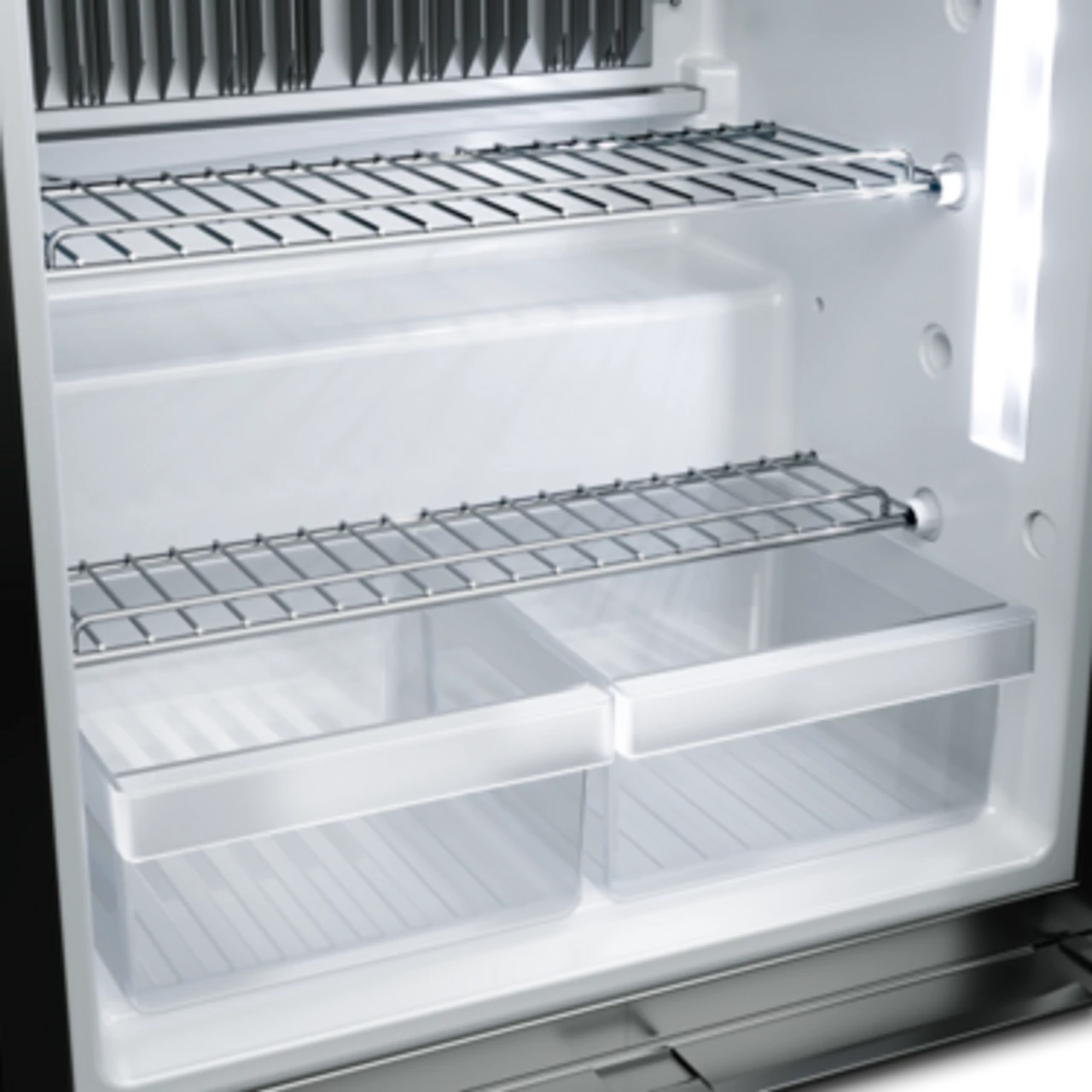

• Internal LED lighting
• Ultra quiet operation

This Dometic RMS 10.5T absorption fridge replaces the following Dometic & Thetford fridge models:

• Dometic: Rm 300 P/A / RM 301 / RM 4290L / RM 4300 / RM 6291 / Rm 7290L / RM 7291L / RMS 850x
• Thetford: N3090A / N3090E / N4090A / N4100A / N4100E+ / N901P / N902E / N3097A / N3097E / N4097A / N4097E

Please note – the RMS 10.5T may not have exactly the same measurements as your old fridge – check measurements carefully!



User Manual



Installation Manual

Fridge replacement guide:



Technical Specifications:

Contents:

1 pc fridge, 1 pc short operation manual, 1 pc QSG 1 pc manual for installation (for AM only), 4 pcs Caps for the screws, 1 pc T piece for the flue gas

Depth:

548 mm

Height:

821 mm

Width:

523 mm

Net weight:

27.40 kg

Parcel weight:

32 kg

Input voltage (AC):

230 V

Input voltage (DC):

12 V

Rated input power (AC):

135 W

Rated input power (DC):

130 W

Input frequency:

50 Hz

Refrigerant type:

R717

Refrigerant amount:

356g

Average energy consumption at AC (EN62552):

2.50 kWh/24h

Gas consumption [g/24h]:

270.00 g/24h
